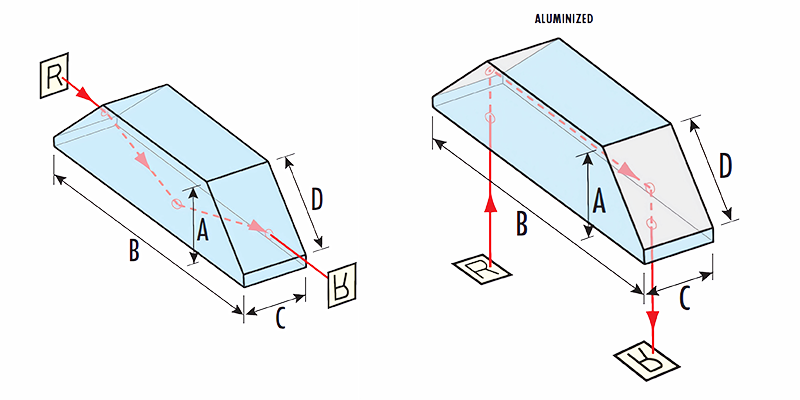

Dove prism is an image rotator. After passing through this prism, the image is inverted 180 degrees.
In addition, when rotating this prism around its optical axis, the rotation angle of the image is twice that of the prism.
Dove prisms are commonly used in optical instruments for image rotation, reflection, and inversion.
Common Specifications（Size and coating can be customized according to user needs）
| NO. | Product number | Side length A | Side length B | Side length C | Thickness D | ||||||
| 1 | DP-001 | 16mm | 67.68mm | 16mm | 22.62mm | ||||||
| 2 | DP-002 | 19mm | 67.5mm | 19mm | 26.87mm | ||||||
